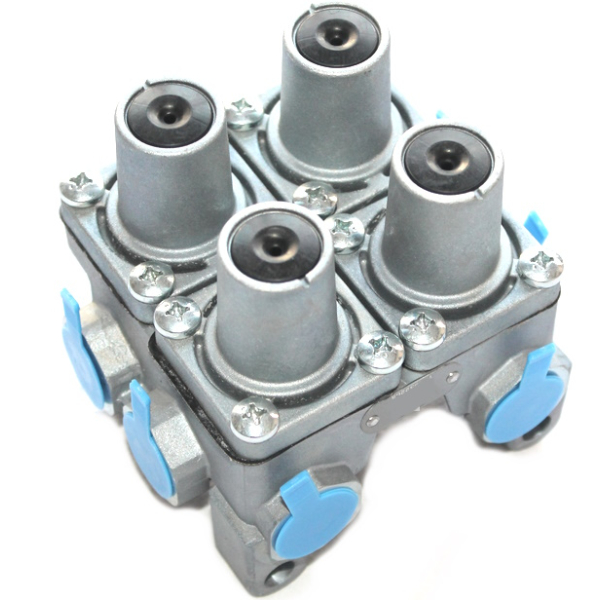

Four-circuit protection valve

SKU: 427787

Category: Brake

Scarce stock, remaining quantity available!
Delivery time: 1 - 7 Workdays (DE - int. shipments may differ)

99,90 €

incl. 19% VAT , plus

Unimog: U 403, 406, 416, 424, 425, 427, 435, 437
MB-trac: 440, 441, 442, 443

Item

Four-circuit protection valve
Connections 1 (supply): M22x1,5
Connections 2 (output): 11,12,21,22,23,24: M16x1,5
Circuit 1: With reverse flow without bypass
Circuit 2: With reverse flow without bypass
Circuit 3: With reverse flow without bypass
Circuit 4: With reverse flow without bypass
Circuit switching: External series connection of circuits 1 and 2 to 3 and 4
Dimension connections 2 (output): 11,12,21,22,23,24: M16x1,5
Dimension connections 1 (supply): M22x1,5 Circuit 1 with backflow and without bypass.
Opening pressure/closing pressure [bar]: 7,0 0/-0,3 Circuit 2 with backflow and without bypass.
Opening pressure/closing pressure [bar]: 7,0 0/-0,3 Circuit 3 with backflow and without bypass.
Opening/closing pressure [bar]: 7.0 0/-0.3 Circuit 4 with backflow and without bypass.
Opening/closing pressure [bar]: 7.0 0/-0.3
Unimog: U 403, 406, 416, 424, 425, 427, 435, 437
MB-trac: 440, 441, 442, 443
Chassis number required, please specify!

Item information	Value
Shipping weight:	1,00 kg
Item weight:	0,80 kg
Comparison number:	A0014310406\|A0014313506\|A0014313806\|A0014314706\|A0014316806 A0014317706\|A0014317806\|A0014318406\|A0024310406\|A002431040680 A0024312906\|A0024319306
Reproduction item based on the original:	Yes
