Seal kit - Steering cylinder MB-trac, Unimog

Seal kit - Steering cylinder MB-trac, Unimog

SKU: 640581

Category: Suspension

Available!

from 79,90 €

incl. 19% VAT , plus (kleinpaket)

MB-trac: 65/70, 440.161, 440.162, 440.163, 440.164, 440.167, 440.168, 440.169, 440.171, 440.172, 440.173
Unimog: U 408

Dichtsatz-Lenkzylinder:

sentence

This item has variations. Please select the requested variation.

Seal kit for steering cylinder
Two different repair kits are available depending on the version and manufacturer, please select the appropriate seal kit above.

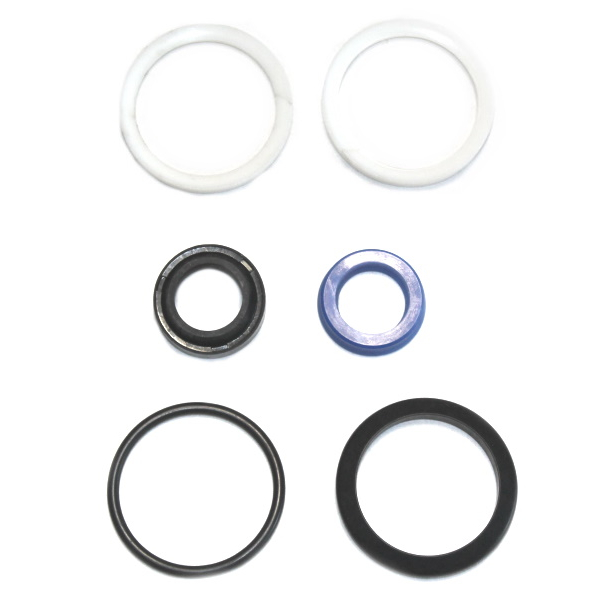

Variant1:
Manufacturer: ZF
640581-001
2 x wiper ring white, outer dimension: approx. 44.5 mm, inner dimension: approx. 36 mm, thickness: approx. 3.5 mm
1 x O-ring: outer dimension: approx. 44 mm, inner dimension: approx. 38 mm, thickness: approx. 3 mm
1 x sealing ring blue: 18-26-8
1 x V-ring: outer dimension: approx. 45 mm, inner dimension: approx. 35 mm, thickness: approx. 5.5 mm
1 x sealing ring: 18-28-7/10

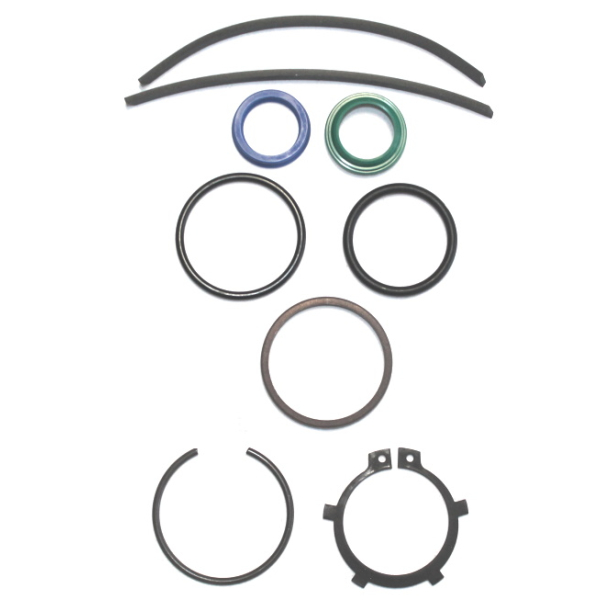

Variant 2:
Manufacturer: Weber
640581-002
1 x sealing ring green: Outer dimension: approx. 28.5 mm, inner dimension: approx. 20 mm, thickness with sealing lip: approx. 7 mm
1 x sealing ring blue: 20-28-5
1 x O-ring: outer dimension: approx. 45 mm, inner dimension: approx. 39 mm, thickness: approx. 3 mm
1 x O-ring: outer dimension: approx. 40 mm, inner dimension: approx. 33 mm, thickness: approx. 3.5 mm
1 x wiper ring: outer dimension: approx. 45 mm, inner dimension: approx. 40 mm, thickness: approx. 4 mm
2 x wiper strips
1 x retaining ring round: outer dimension: approx. 48 mm, inner dimension: approx. 43.5 mm, thickness: approx. 2.4 mm
1 x circlip: outer dimension: approx. 43 mm, inner dimension: approx. 36.5 mm, thickness: approx. 1.5 mm

MB-trac: 65/70, 440.161, 440.162, 440.163, 440.164, 440.167, 440.168, 440.169, 440.171, 440.172, 440.173
Unimog: U 408

Attention: When returning these items, we charge 15% restocking of the purchase price!
